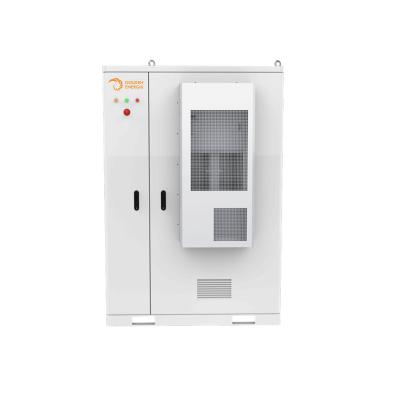

The air cooled 100kW battery cabinet with battery storage 200kWh is a fully integrated, containerized energy storage system designed for commercial and industrial (C&I) applications. In simple terms, it's a large, powerful "power bank" that stores electrical energy for later use.
Item NO.:
GE-100KW-215KWHPayment:
T/T, L/CProduct Origin:
ChinaColor:
light grayProduct weight:
2.5tLead Time:
20daysCertificate:
CE/TUVClass of Protection:
IP55The 100kW 200kWh Air Cooling Battery Cabinet is a robust, ready-to-deploy energy storage solution that provides a significant balance of power and capacity for businesses looking to manage energy costs, increase resilience, and support sustainability goals.
Peak Shaving: Charging during off-peak hours when electricity is cheap and discharging during peak hours to reduce high demand charges from the utility.
Backup Power: Providing an uninterrupted power supply (UPS) during grid outages to maintain critical operations.
Renewable Energy Integration: Storing excess solar or wind energy for use when the sun isn't shining or the wind isn't blowing.
Microgrids & Energy Arbitrage: Buying and storing low-cost energy to be sold or used when prices are high.

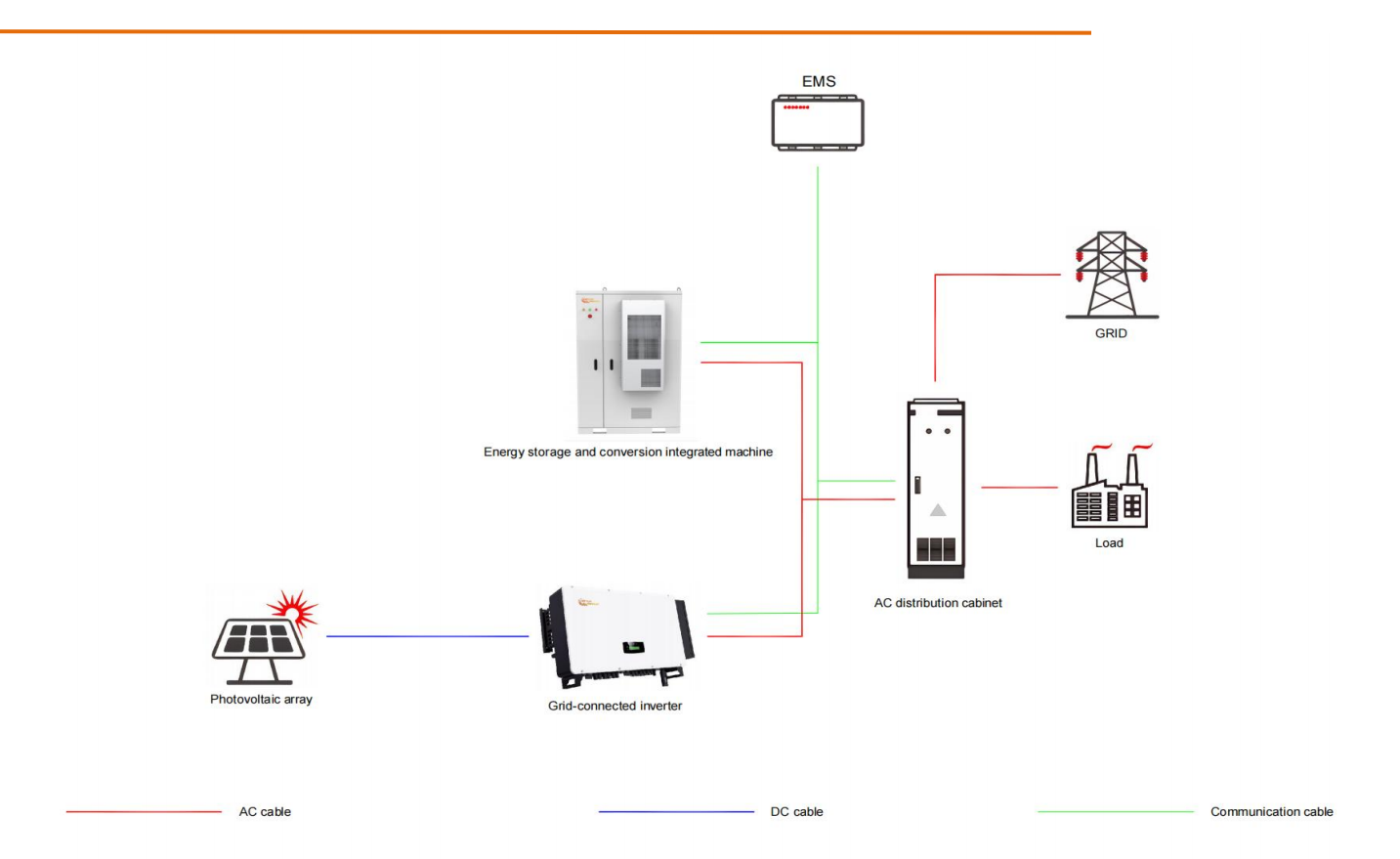

AC Coupling Wire Drawing

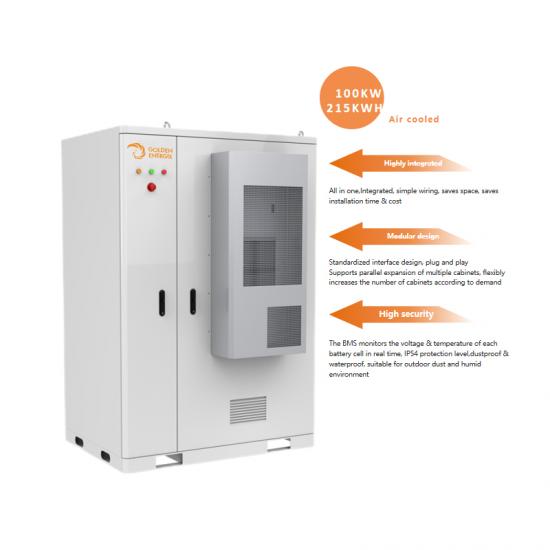

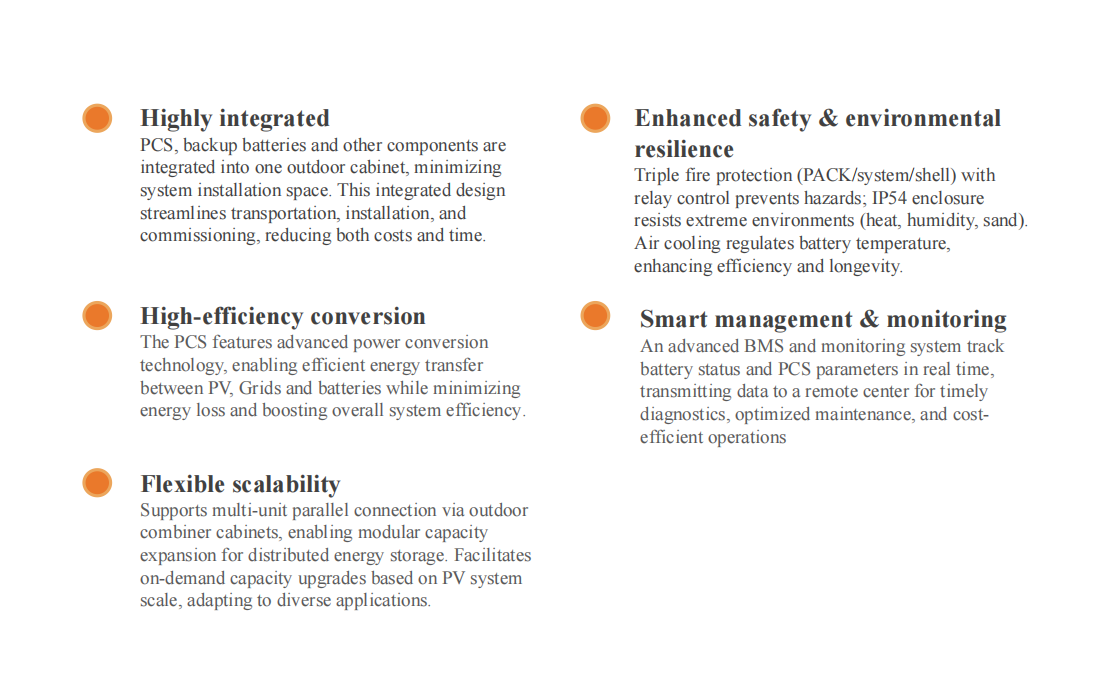

Product Features
Product Datasheet
| Model | GE-100KW/215KWH |
| Battery Type | 280Ah |
| Battery Capacity | 215.04kWh |
| Normal Voltage | 768V |
| Voltage Range | 672V-852V |
| Rated Output Power | 100kW |
| Max AC Output Power | 116kVA |
| THDi | <3%(at normal power) |
| Nominal Grid Voltage | 400V, 3L+N+PE |
| Nominal Grid Frequency | 50/60Hz |
| Power Factor Range | 1 leading...1 lagging |
| Protection Class | IP 54 |
| Anti-corrsion Level | C3 |
| Max Number of Connection | 10pcs |
| Communication | RS485/CAN |
| Certification | IEC 62619,EN62477,NRS097,EN50549 |
| Weight | 2500kgs |

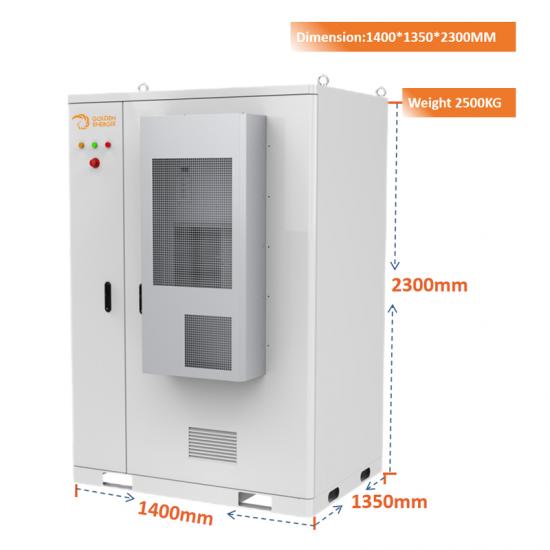

| Dimension(W*D*H) | 1400*1350*2300 |
| Permissible Altitude | 2000m |
| Working Temperature | 0-45℃ Charge, -20-50℃ Discharge |
