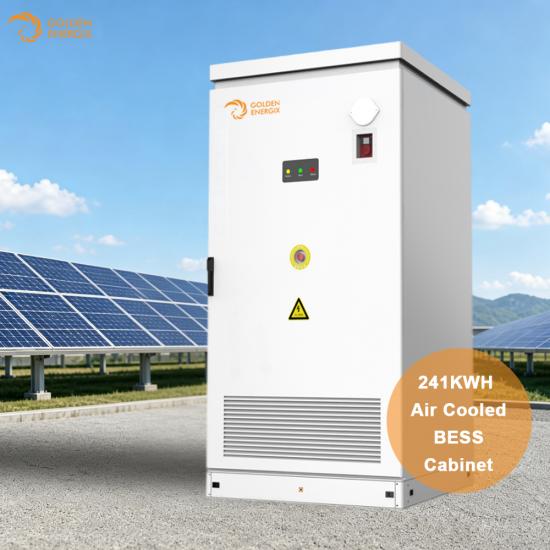

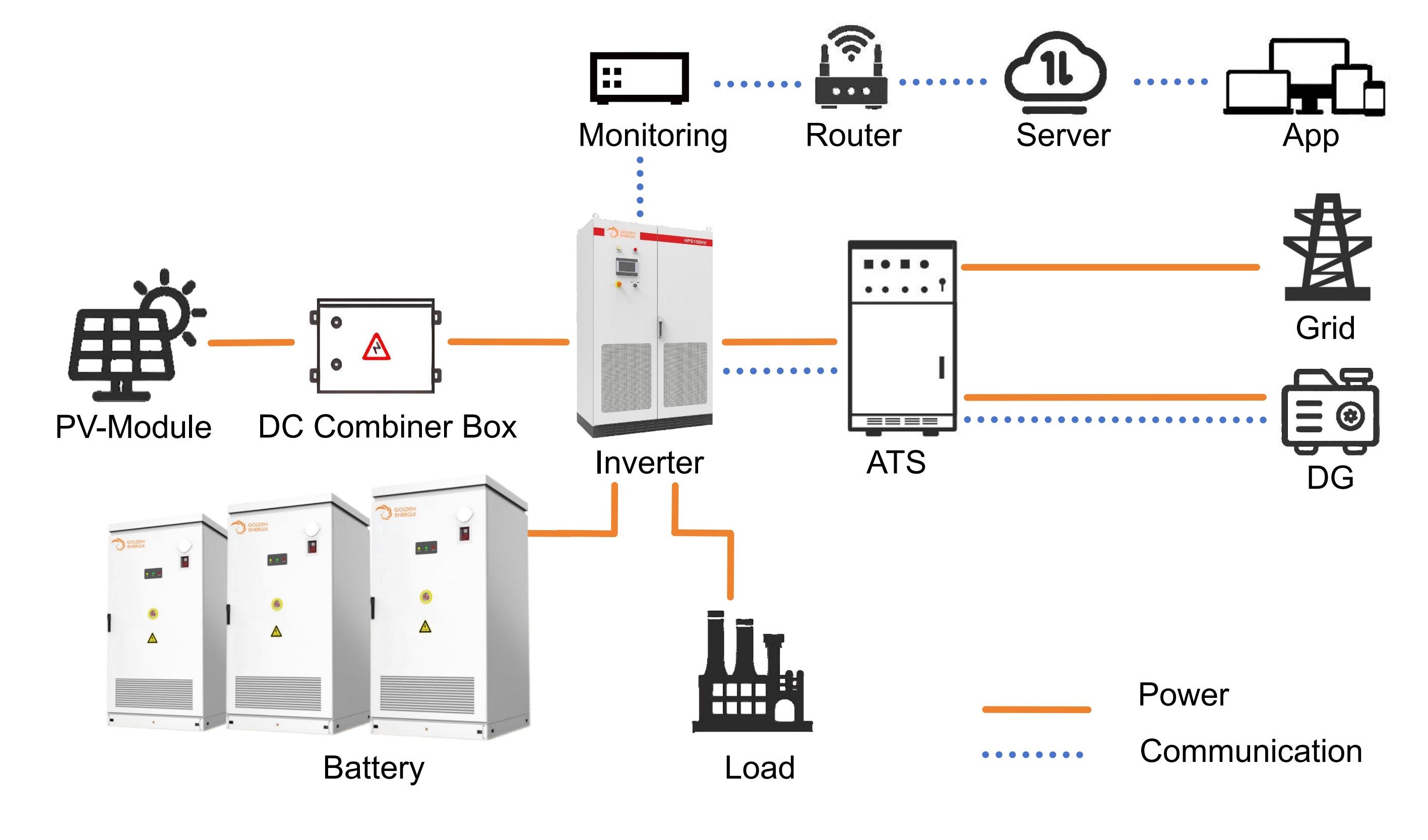

The Golden Energix 241kWh air-cooled energy storage cabinet is tailored for commercial & industrial use: it occupies less than 2m², features a rugged enclosure and an active safety system for enhanced reliability, supports parallel connection of multiple cabinets for flexible scaling, and leverages 24/7 real-time monitoring with adaptive charge/discharge strategies to improve economic benefits.

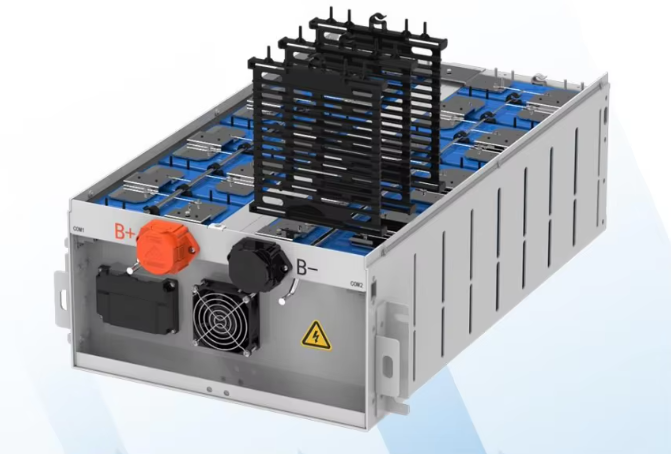

Battery module:
GE-BESS 241KWHNominal Capacity:
241KWHNominal Voltage:
76.8VOperation Cycle Life:

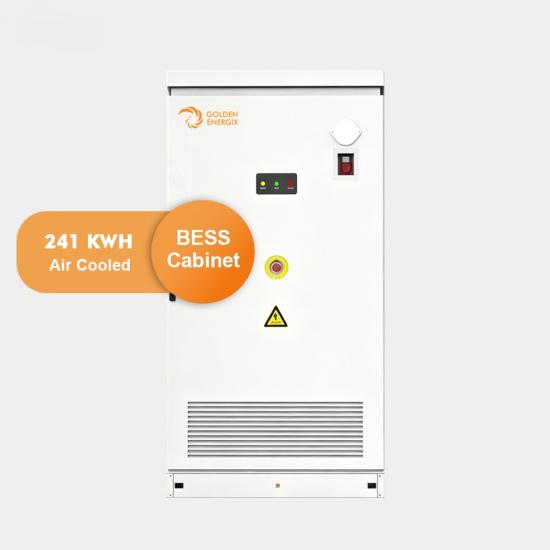

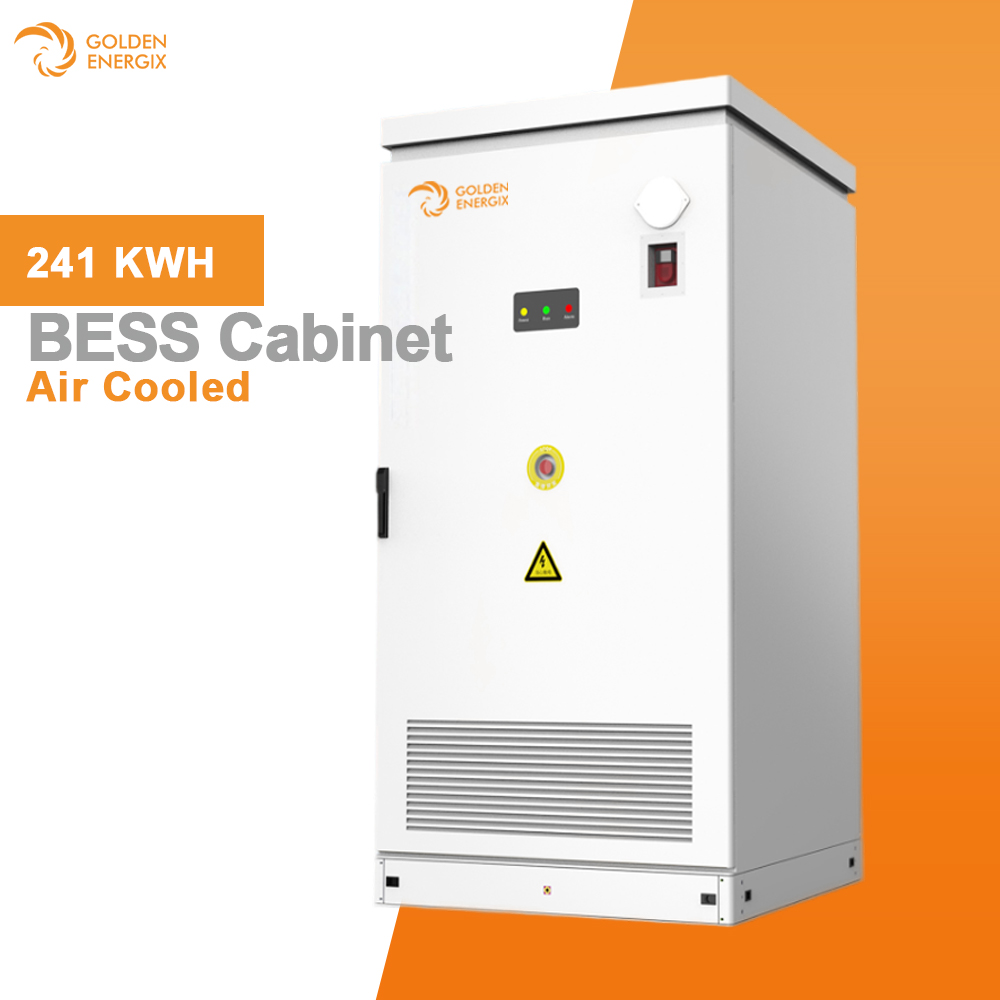

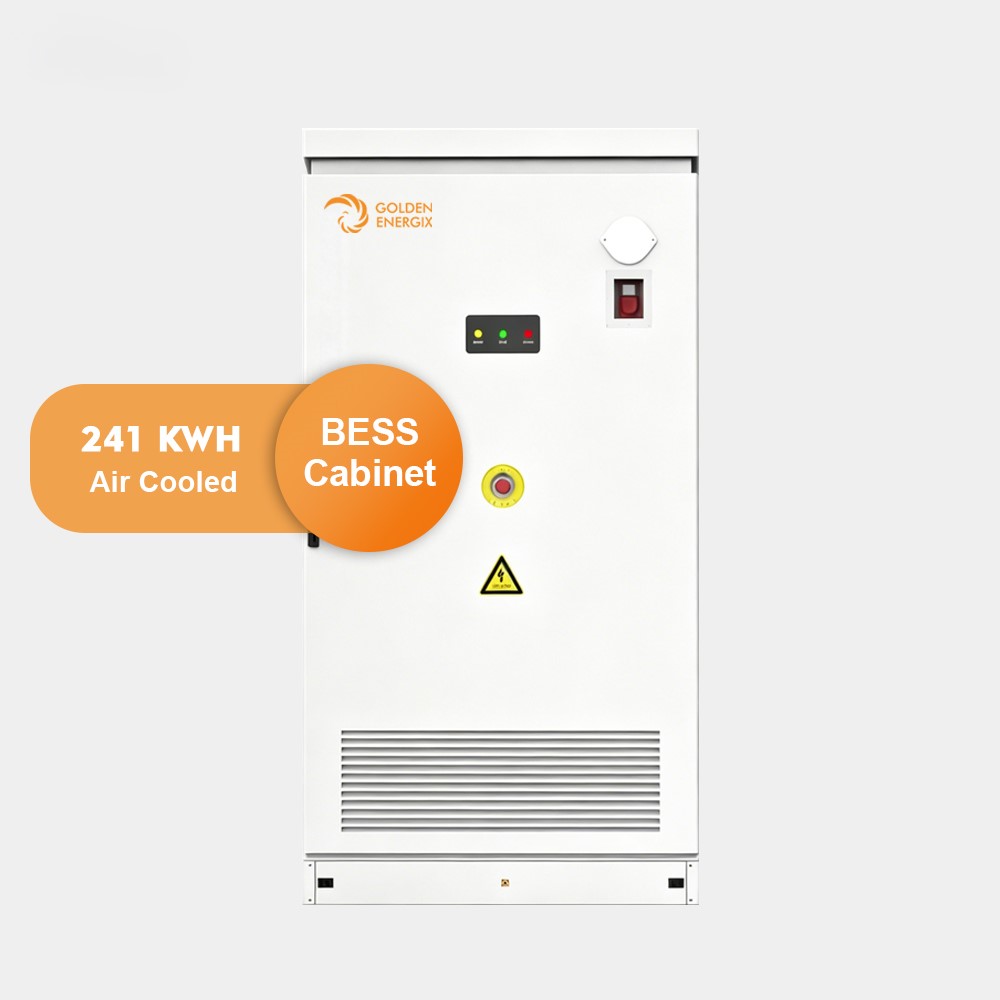

8000+241KWH Air Cooled BESS Cabinet

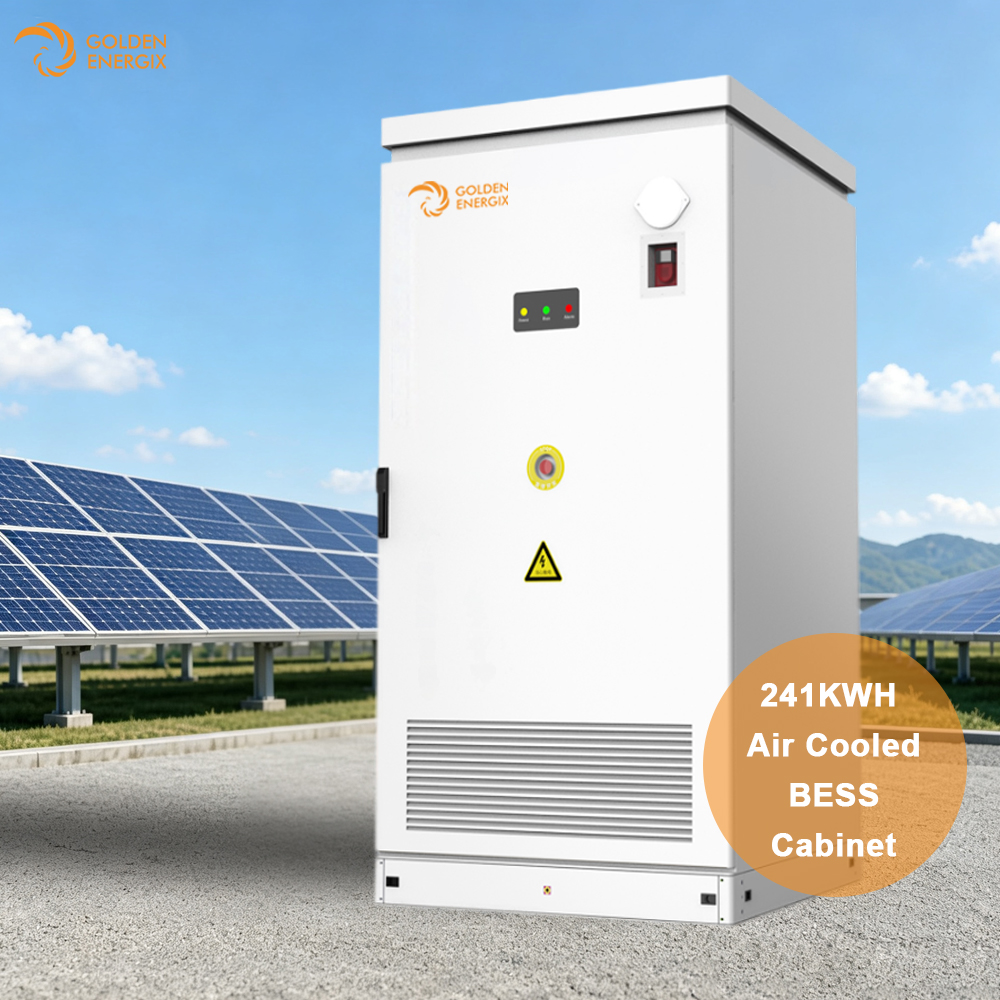

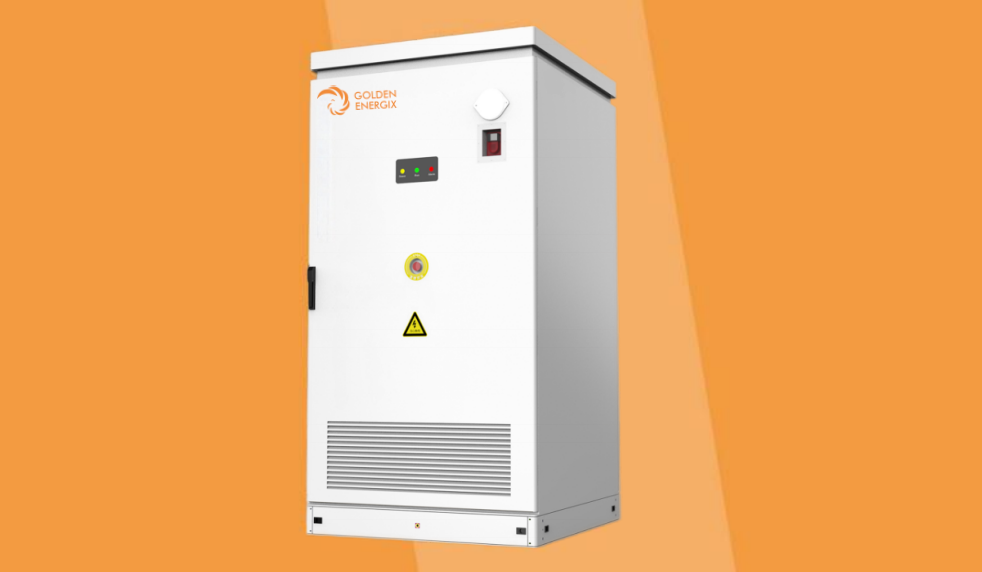

The Golden Energix 241kWh air-cooled energy storage cabinet is a large outdoor energy storage station designed for industrial and commercial outdoor energy storage sites. It maximizes energy utilization and economic returns through automated charging and discharging.

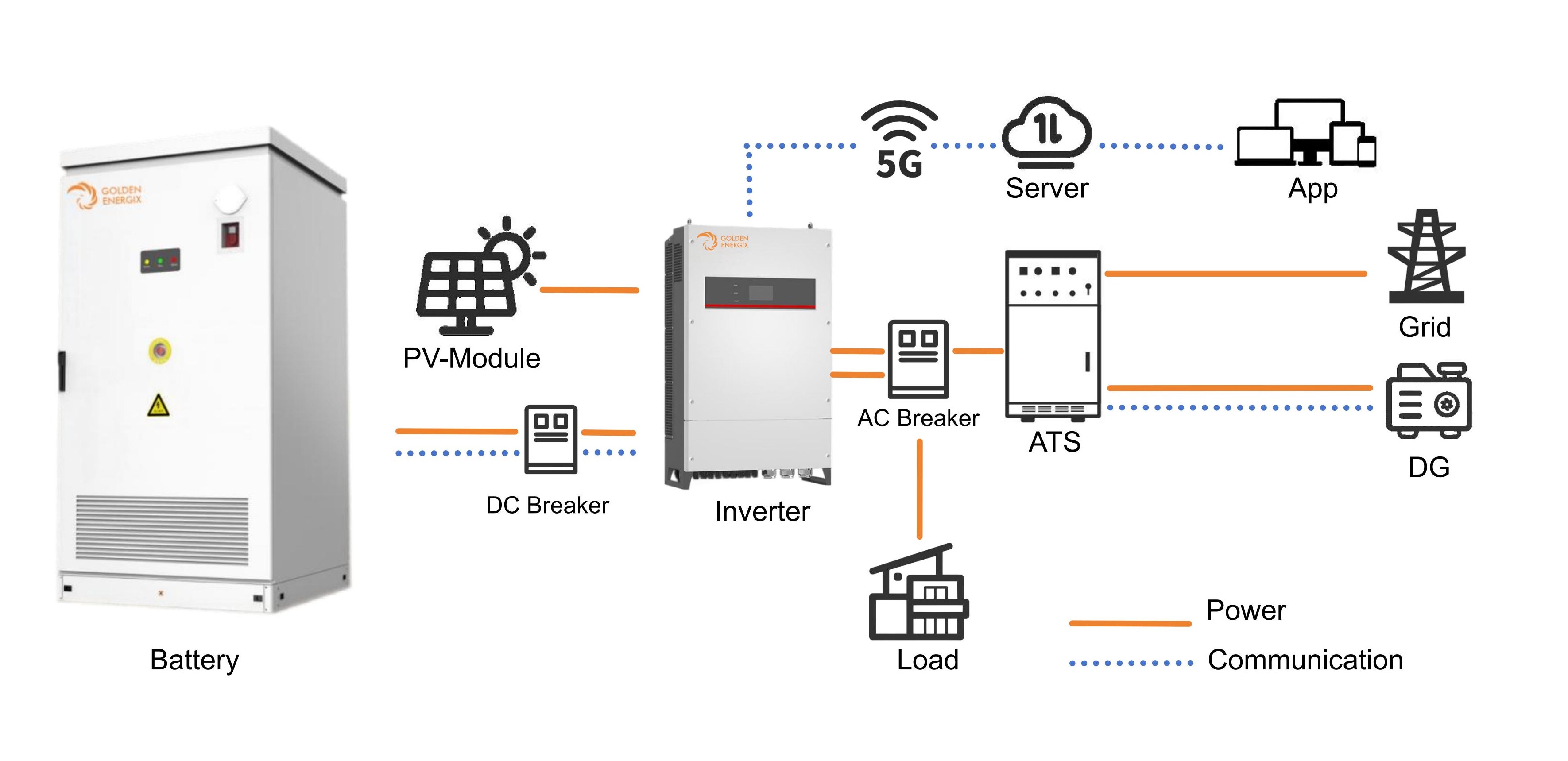

Our high-voltage BMS is engineered to communicate seamlessly with industry-leading hybrid inverters. Compatible brands include but are not limited to:
Growatt, GoodWe, Deye, Victron, Sofar, Sungrow, and Solis.
(Please contact our technical team for the latest firmware compatibility list.)
| Product Name |
GE-BESS 241KWH
|
|
Nominal Voltage
|
768V
|
| Module Capacity | 314Ah |
|
Nominal Energy
|
241.152kWh |
| Configuration | 1P240S |
|
Operating Voltage Range
|
672V～864V 0.5C, 25±2℃ CELL: 2.8V～3.60V |
| Dimensions | 1180mm(W) * 1230mm(D) * 2250mm(H) |
| Weight | Approx. 2500kg |
| Corrosion Resistance Class | C4 |
| Auxiliary Power Supply Range | 220VAC 50Hz |
| Protection Class | IP54 |
| System Efficiency | 90% @25℃ |
| Life Cycle | ≥8000 cycles |
| Warranty | 5+5years |

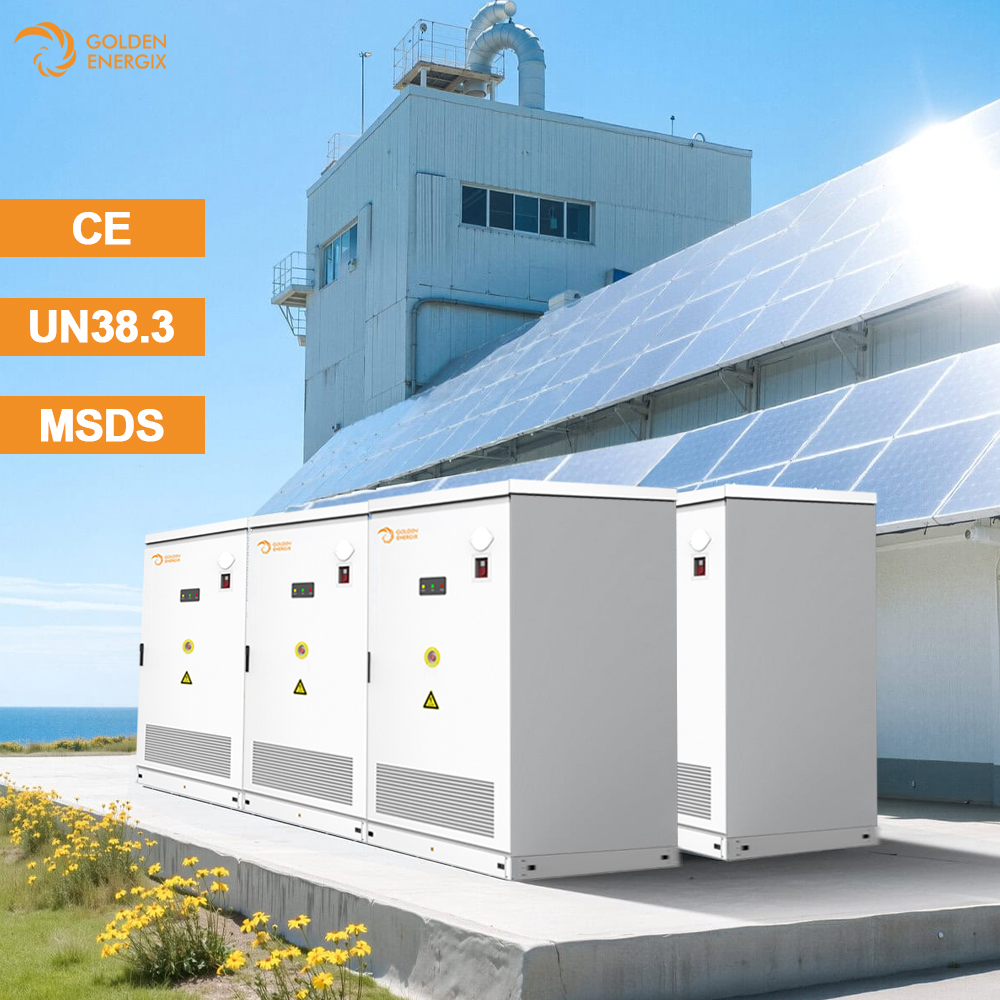

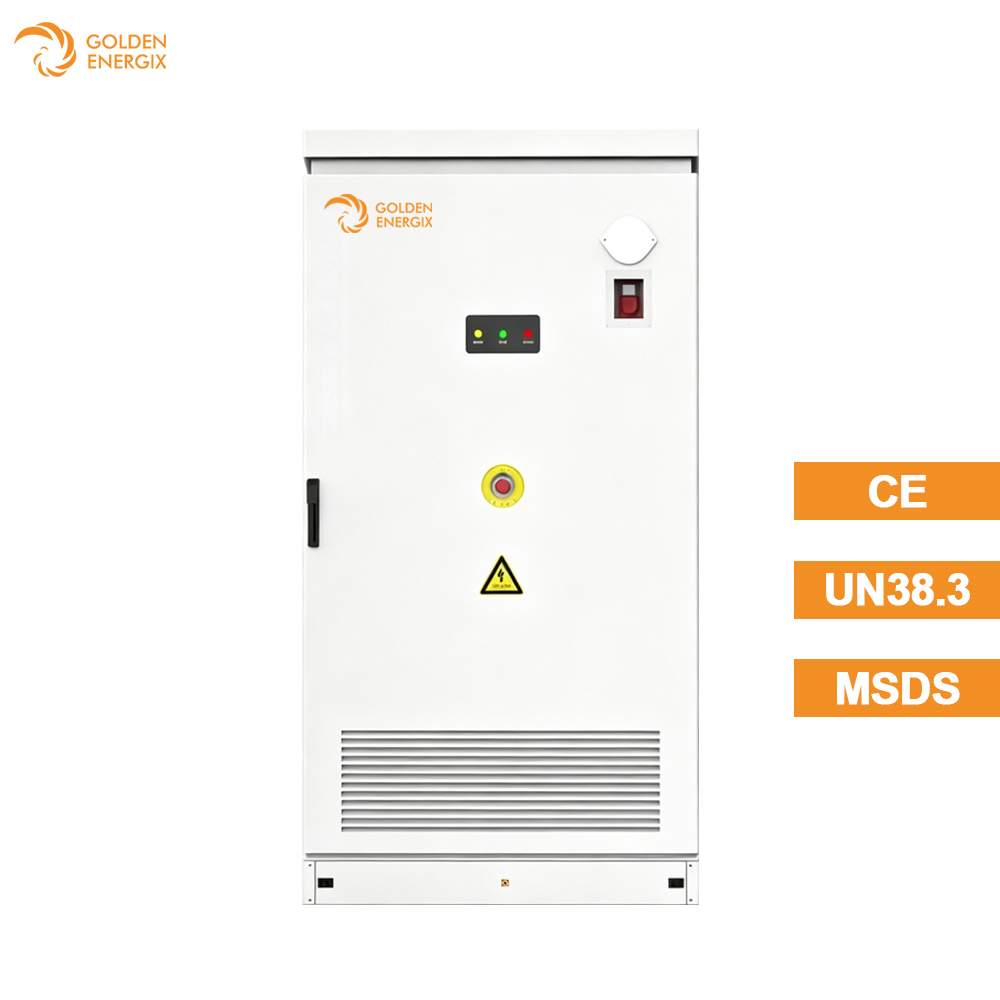

| Certification | CE,UN38.3,MSDS |
Q1: Can I mix this 241kWh Battery Cabinet with other brands or different capacities?
A: We strongly recommend using the same Golden Energix modules within one system. Because our system uses a sophisticated Two-level BMS (BCU & BMU) specifically tuned for 314Ah cells, mixing with other brands may cause communication errors or uneven charging.
Q2: What does the "5+5 years" warranty cover?
A: We provide a 5-year full replacement warranty followed by an additional 5-year limited warranty (parts or technical support). With 8,000+ cycles, our LiFePO4 cells are designed to retain over 70% of their original capacity after 10 years of standard use.
Q3: Is the WiFi module included, and can I monitor it on my phone?
A: Yes, you can monitor real-time parameters such as State of Charge (SoC), voltage, and temperature remotely via our dedicated app or web portal.
Q4: Is it safe to install this Outdoor?

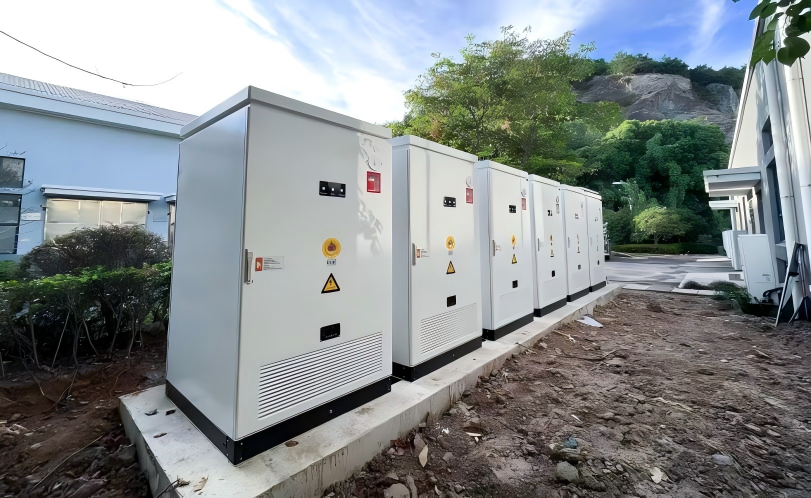

A: Absolutely. Our batteries use LiFePO4 chemistry, the safest lithium technology available. Combined with the built-in protection disconnect switch and active-fan cooling+air conditioning system+fire extinguishing system. It is designed to operate safely in outdoor commercial & industrial environments (IP54 Protection grade, C4 corrosion-proof grade）
