Golden Eenrgix 314AH Lifepo4 Battery System is a compact and high-capacity lithium battery that offers reliable energy storage for solar power systems. This battery system is designed to withstand high temperatures and harsh environmental conditions, The advanced Lifepo4 technology ensures long cycle life and high energy density, providing homeowners with a stable and efficient power supply.
Item NO.:
Hi-16Lead Time:
20daysCertificate:
CE, TUV,UL,UN38.3,MSDSBattery module:
314AhNominal Capacity:
241kWh-2MWhNominal Voltage::
51.2*NOperation Life:
10+yearsOperation Cycle Life:
6000
LiFePO4 BATTERY MODULE
The 51.2V 314Ah high-voltage LiFePO4 battery module features a three-tier Battery Management System (BMS) designed to continuously monitor critical parameters—including cell voltage, current, and temperature. This intelligent BMS actively optimizes charging and discharging operations, ensuring extended cycle life and consistent, reliable performance.
Golden Energix LiFePO4 batteries provide a robust and dependable energy storage solution, engineered to meet a wide range of application needs.
Application Scenarios
* Peak Shaving / Demand Charge Management
* Backup Power / UPS Enhancement
* Time-of-Use (TOU) Arbitrage
* Renewable Energy Integration (Solar/Wind Firming)
* Frequency Regulation & Grid Services
* Grid Deferral & Investment Delay
* Large Home / Estate or Off-Grid Systems
* Community Energy Storage & Microgrids

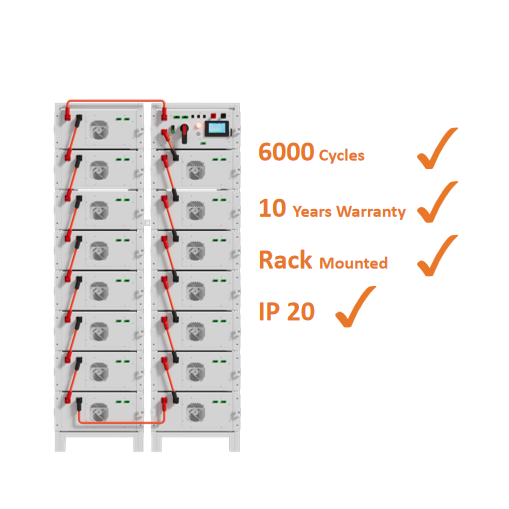

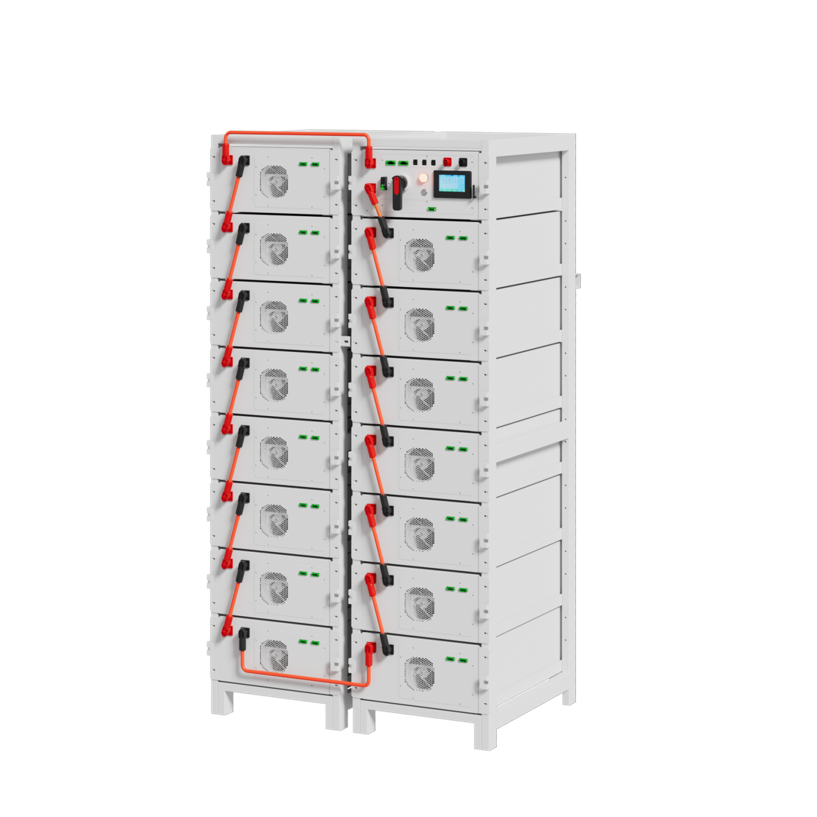

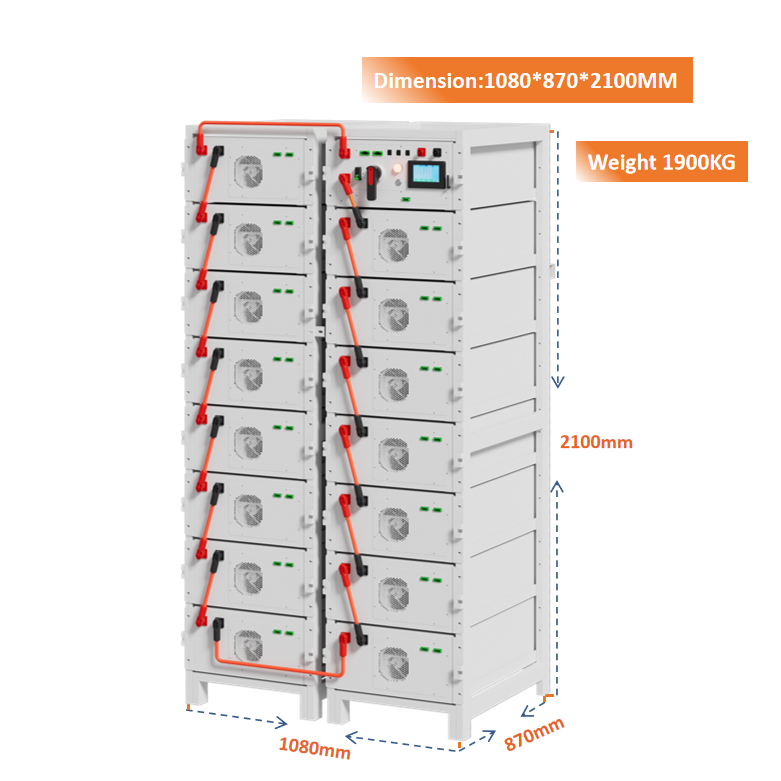

314Ah High Voltage Battery Rack
| Hi-16 | |
| BASIC PARAMETERS | |
|
Installation Model
|
Rack-Mounted
|
|
Cell Chemistry
|
LifePO4(LFP)
|
|
Module Energy (kWh)
|
16.076
|
|
Module Dimension
|
775*532*234(±5)
|
|
Module Weight Approximate (kg)
|
113±3
|
|
Charge/Discharge Current (A)
|
Recommend 157/Max 180
|
|
Working Temperature (℃)
|
Charge:0～55 / Discharge:-20～55
|
|
Cycle Life
|
≥6000 (25±2℃/0.5C/EOL70%)
|
|
Certification
|
CE UN38.3
|
Joint Debugging before Shipping
