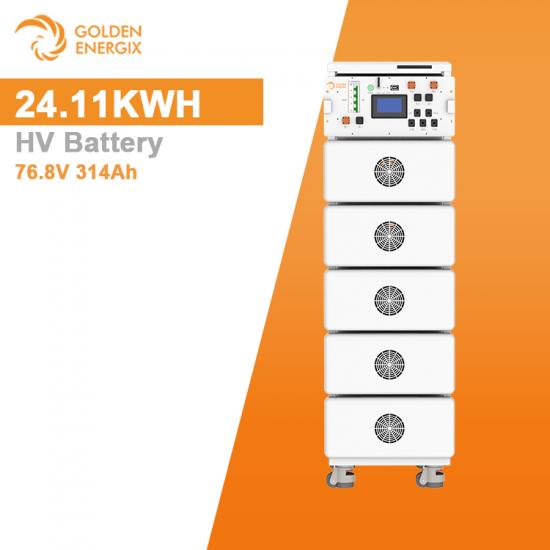

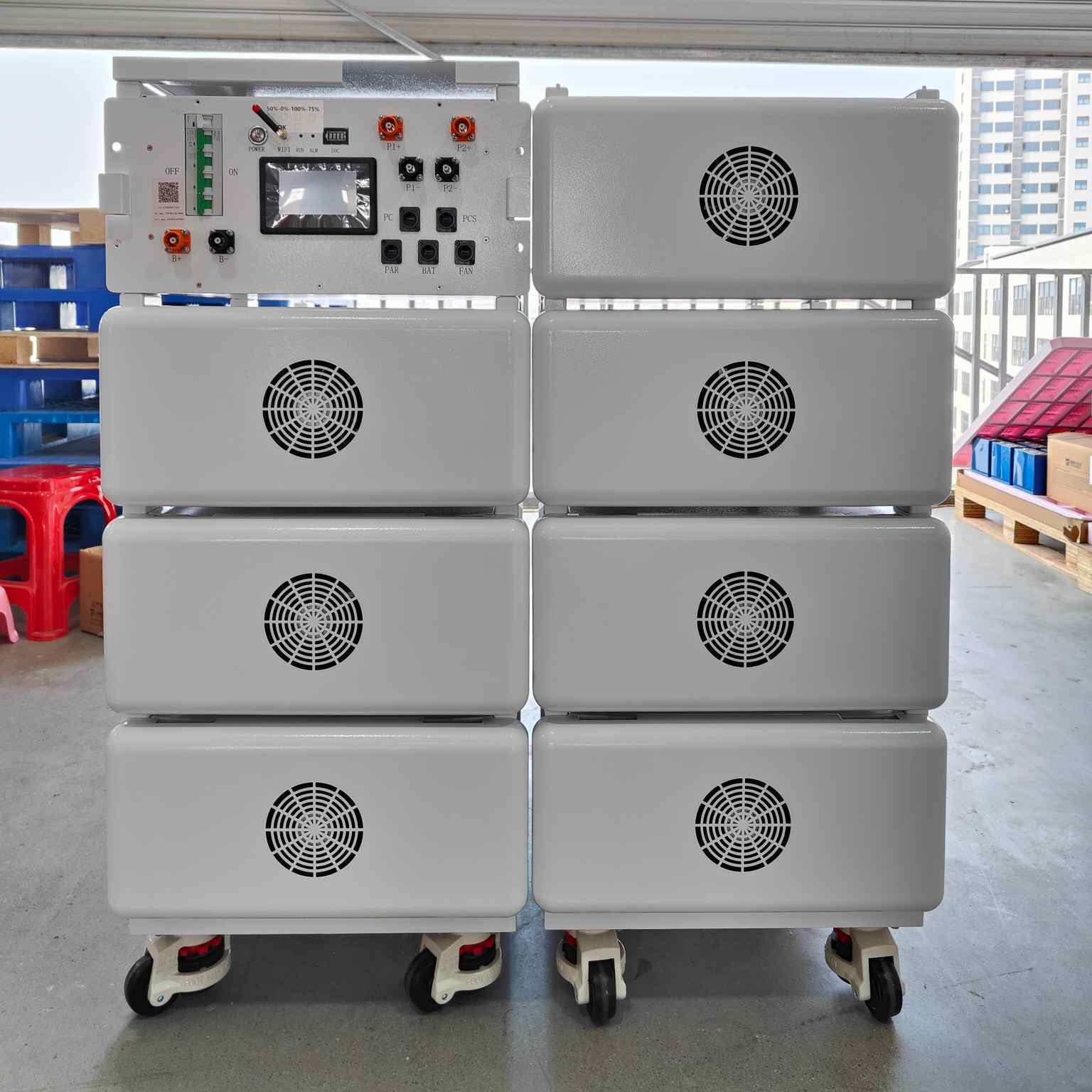

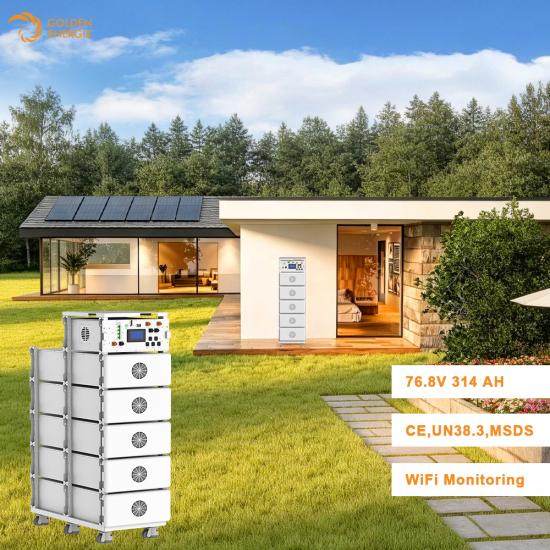

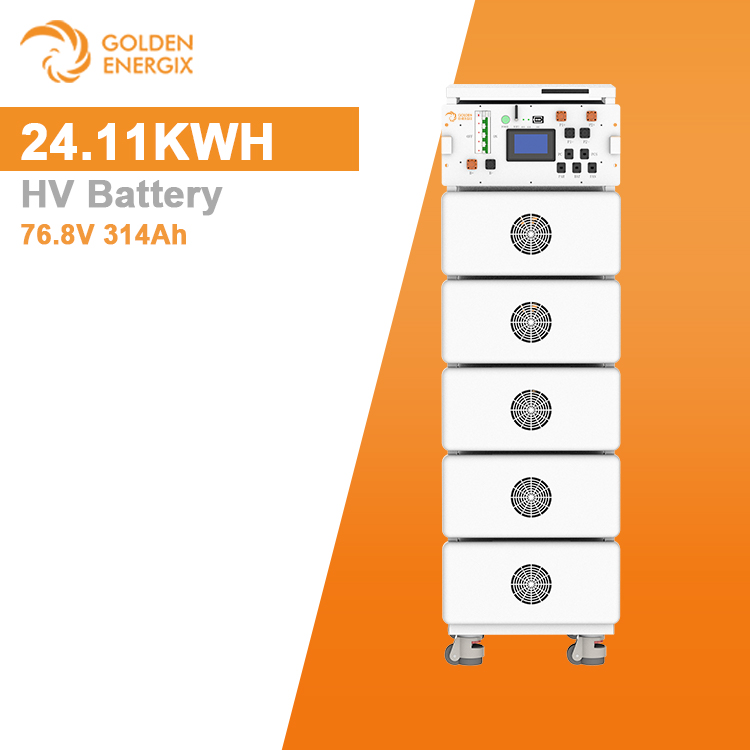

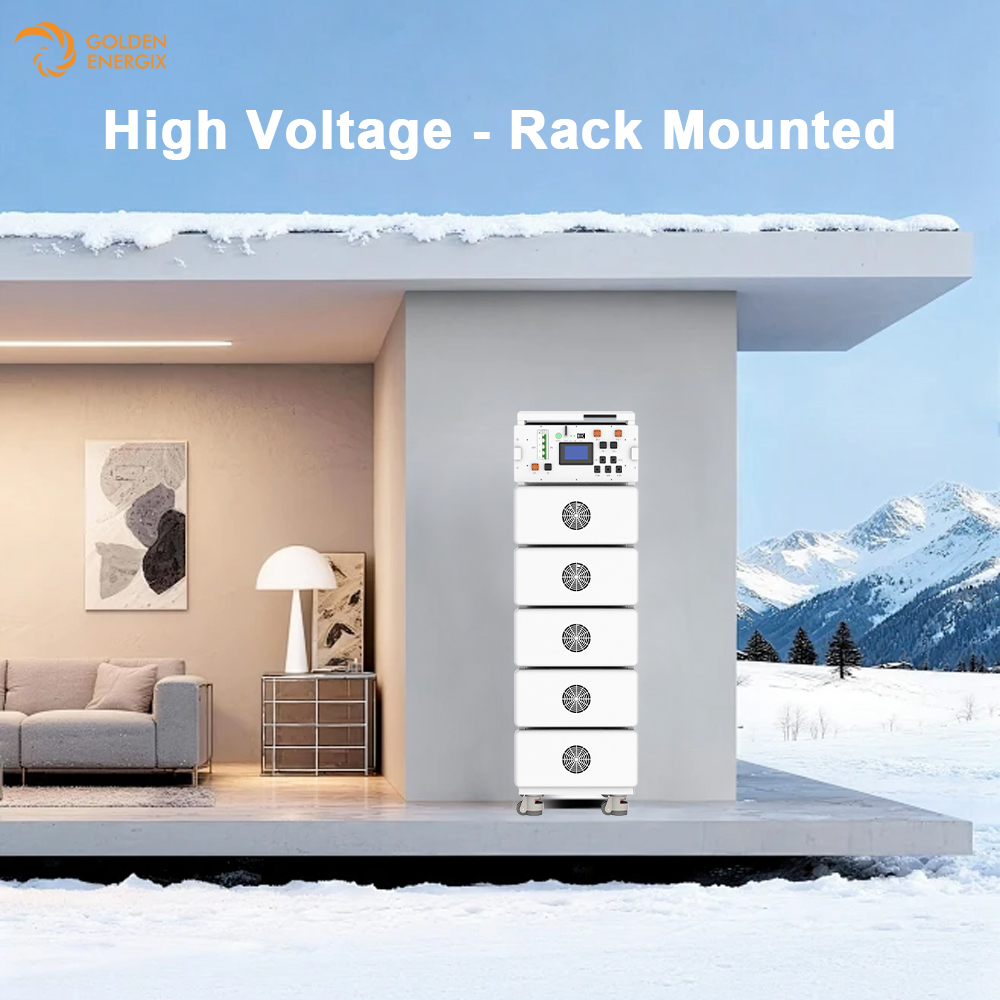

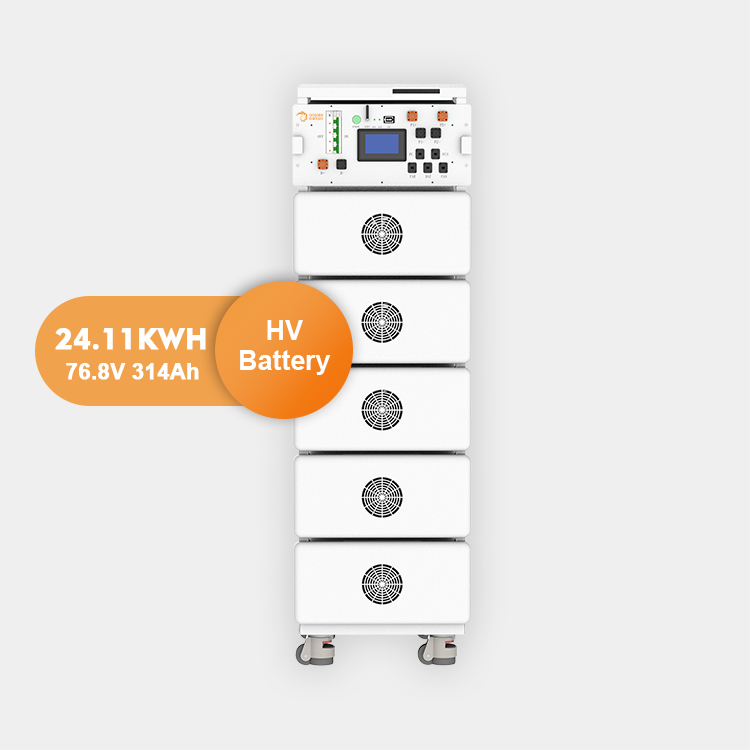

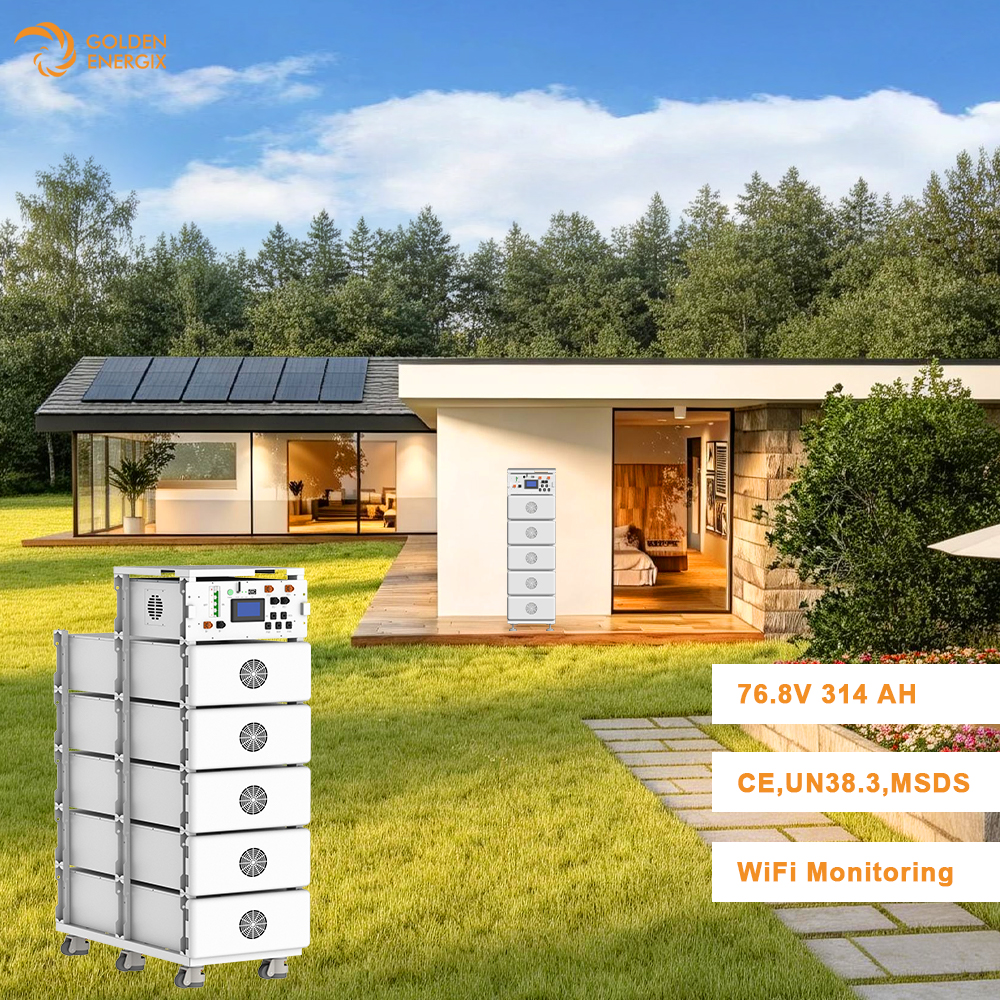

Golden Energix Scalable high-voltage 76.8V 314Ah 24KWH LiFePO4 battery, Compact structure, saving more space, flexible layout, easy to install, operate, and maintain. Two-level BMS intelligent management (BCU and BMU), with built-in protection cut-off switch; cooling fan and multi-hole heat dissipation structure for effective cooling; standard color display and WIFI module; supports multiple units in parallel.
The high-voltage main control box features a screen for intuitive parameter viewing, a standard cooling fan, and a multi-hole heat-dissipation structure for effective cooling, thereby reducing battery system failures.
Battery module:
CE-24.12HVNominal Capacity:
24.12KWHNominal Voltage:
76.8VOperation Cycle Life:
8000+24KWH High Voltage Rack Lithium Battery
The Golden Energix 24kWh High-Voltage System is a cutting-edge energy storage solution designed for residential and light commercial applications. Featuring high-density 76.8V 314Ah LiFePO4 cells and a scalable high-voltage architecture, this system ensures maximum energy efficiency with a minimal footprint.
With its integrated Smart Two-Level BMS and robust thermal management, it offers unparalleled safety and long-cycle reliability for modern off-grid and hybrid solar installations.
Product Description:

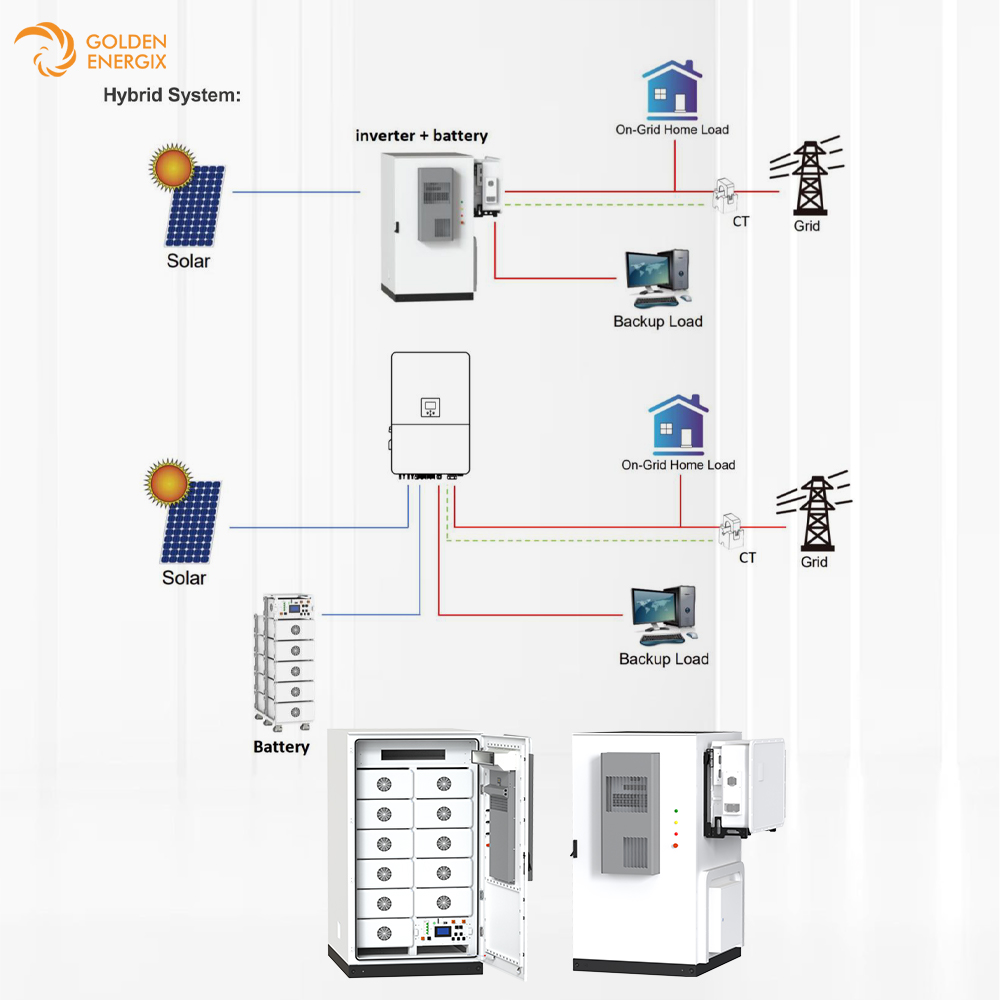

Our high-voltage BMS is engineered to communicate seamlessly with industry-leading hybrid inverters. Compatible brands include but are not limited to:
Growatt, GoodWe, Deye, Victron, Sofar, Sungrow, and Solis.
(Please contact our technical team for the latest firmware compatibility list.)
| Product Name |
76.8V 24kWh Rack Mount LiFePO4 Battery Pack
|
|
Cell Chemistry
|
LiFePO4
|
| Module Energy | 24.12KWh |
| Module Nominal Voltage | 76.8V |
| Module Capacity | 314Ah |
| Module Dimension | 440*1063*242(W x D x H,mm) |
| Module Weight Approximate | 177kg |
| Maximum number of modules | 11 |
| Charge/Discharge Current | Recommend 160A / Max 200A |
| Working Temperature | -10~55℃ |
| Cooling Mode | Fan Cooling |
| Communication Port | Can, RS485 |
| Humidity | 5%~85%RH |
| Altitude | ≤2000m |
| IP Rating of Enclosure | IP20 |
| Installation Location | Stack Mounting, Iron Frame Mounting |
| Storage Temperature | 0-35℃ |
| Recommend Depth of Discharge | 90% |
| Cycle Life | ≥8000 Times |
| Warranty | 5+5years |
| Certification | CE,UN38.3,MSDS |
Q1: Can I mix this 24kWh battery with other brands battery or different capacities?
A: We strongly recommend using the same Golden Energix modules within one system. Because our system uses a sophisticated Two-level BMS (BCU & BMU) specifically tuned for 314Ah cells, mixing with other brands may cause communication errors or uneven charging.
Q2: Why is a High-Voltage (HV) system better than a Low-Voltage (LV) one?
A: High-voltage systems offer higher round-trip efficiency and lower energy loss during discharge. Additionally, HV systems allow for smaller cable sizes and are more compatible with large-scale hybrid inverters used in commercial and modern residential setups.
Q3: What does the "5+5 years" warranty cover?
A: We provide a 5-year full replacement warranty followed by an additional 5-year limited warranty (parts or technical support). With 8,000+ cycles, our LiFePO4 cells are designed to retain over 70% of their original capacity after 10 years of standard use.
Q4: Is the WiFi module included, and can I monitor it on my phone?
A: Yes, every Golden Energix 24kWh unit comes with a standard WiFi module. You can monitor real-time parameters such as State of Charge (SoC), voltage, and temperature remotely via our dedicated app or web portal.
Q5: Is it safe to install this indoors?
A: Absolutely. Our batteries use LiFePO4 chemistry, the safest lithium technology available. Combined with the built-in protection disconnect switch and active fan cooling, the system is designed to operate safely in residential and indoor commercial environments (IP20 rated).
